Tie Rod Hole Leak Repair & Waterproofing (Permanent Interior Repair)

Q: How long does the repair take?

Most tie-rod leak repairs take 60 to 90 minutes to complete.

Q: Will it leak again after the repair?

The injected resin completely fills the rod hole cavity, creating a permanent waterproof barrier. The repair is guaranteed.

Leaking tie-rod hole with associated mud staining — A leaking tie-rod hole is a common source of basement water seepage in poured concrete foundations.

Tie rod hole leaks are one of the most common causes of basement seepage in poured concrete foundations.
They often appear as a dark grey circle and may develop into visible water streaks on the wall during rain.
The good news: tie rod hole leaks can be permanently repaired from inside, with no exterior excavation.

In some cases, what appears to be a simple leaking tie-rod hole is actually part of a larger leak path, especially when a foundation crack runs through or near the tie-rod hole. When that happens, the proper repair is typically a full polyurethane foundation crack injection rather than a simple rod-hole repair, since repairing only the tie-rod hole may leave the crack as an active pathway for water entry.

Since 2002, AquaGuard Injection & Waterproofing® has repaired thousands of tie rod hole leaks across the GTA — backed by a 25-year written, transferable warranty.

📞 Call 888-284-2384
|
💬 Text Us photos of your leak
|
Get a Quote

What Is a Tie Rod Hole Leak?

During construction, steel tie rods hold the wall forms together while the concrete cures.
After the forms are removed, these rods are removed leaving an open hole; sometimes the tie-rods remain stuck inside the wall.

Leaking tie-rod holes often leave brown mud staining, white mineral deposits (efflorescence), or dark damp areas directly beneath the repair patch. In some cases, rust staining may also be present.

Section of poured concrete foundation wall with patched tie-rod holes — Builders use tie-rods to hold concrete forms together while the foundation cures. There are 4 tie-rods used to hold together a pair of forms and they are typically patched over by the builder during home construction when the forms are removed. The patches often have gaps in them and the cement patch commonly separates from the foundation surface. Given the diameter of the tie-rod holes, a lot of water can enter a basement very quickly.

Common Signs of a Tie Rod Hole Leak

Mud staining on a poured concrete wall in line with a tie-rod hole.
Mineral staining or white efflorescence around a tie-rod hole.
Water streaks running down the wall from a tie-rod hole during wet weather.
A dark area surrounding a tie-rod hole indicative of concrete saturation.

Visual Signs of Tie Rod Hole Leaks

Tie-rod hole leaks don’t always look the same. Some produce only minor staining, while others allow enough groundwater to create muddy streaks or puddles on the basement floor. The examples below illustrate the most common signs of a leaking tie-rod hole.

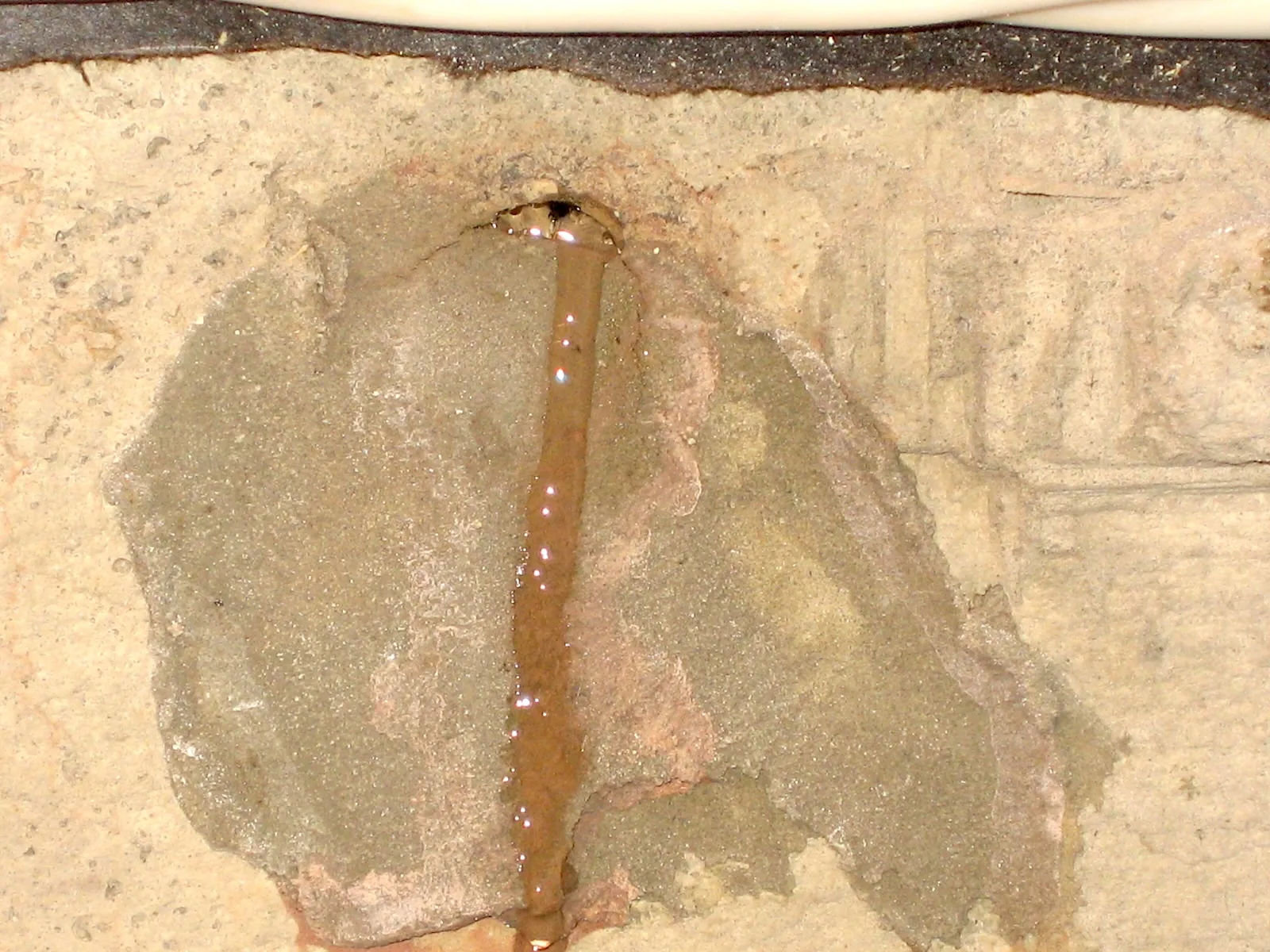

Actively leaking tie rod hole with muddy water running down a poured concrete foundation wall — An actively leaking tie-rod hole during wet weather. Significant groundwater pressure can force surprising amounts of water into a basement.

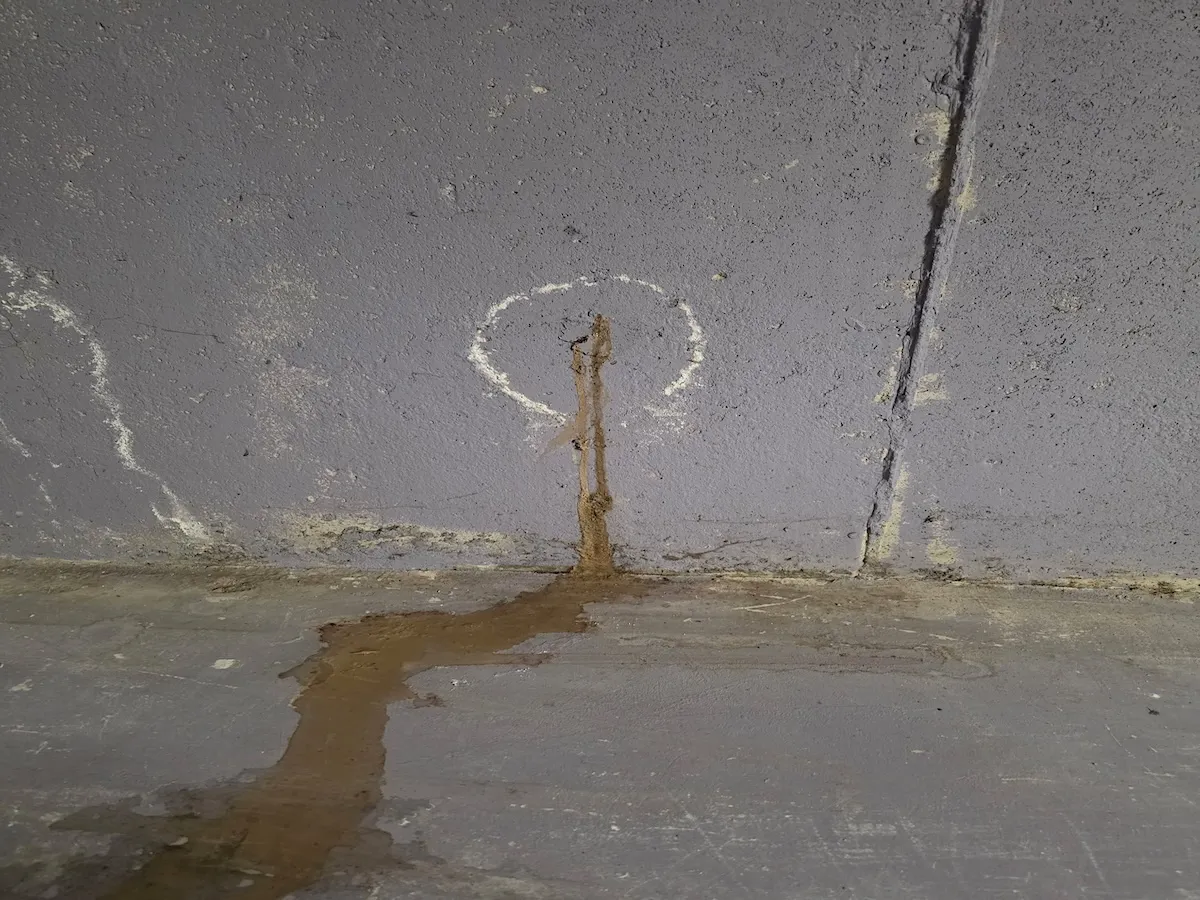

Leaking tie rod hole in a Newmarket basement with visible water staining — A leaking tie-rod hole in a Newmarket basement leaving muddy water streaks on the foundation wall.

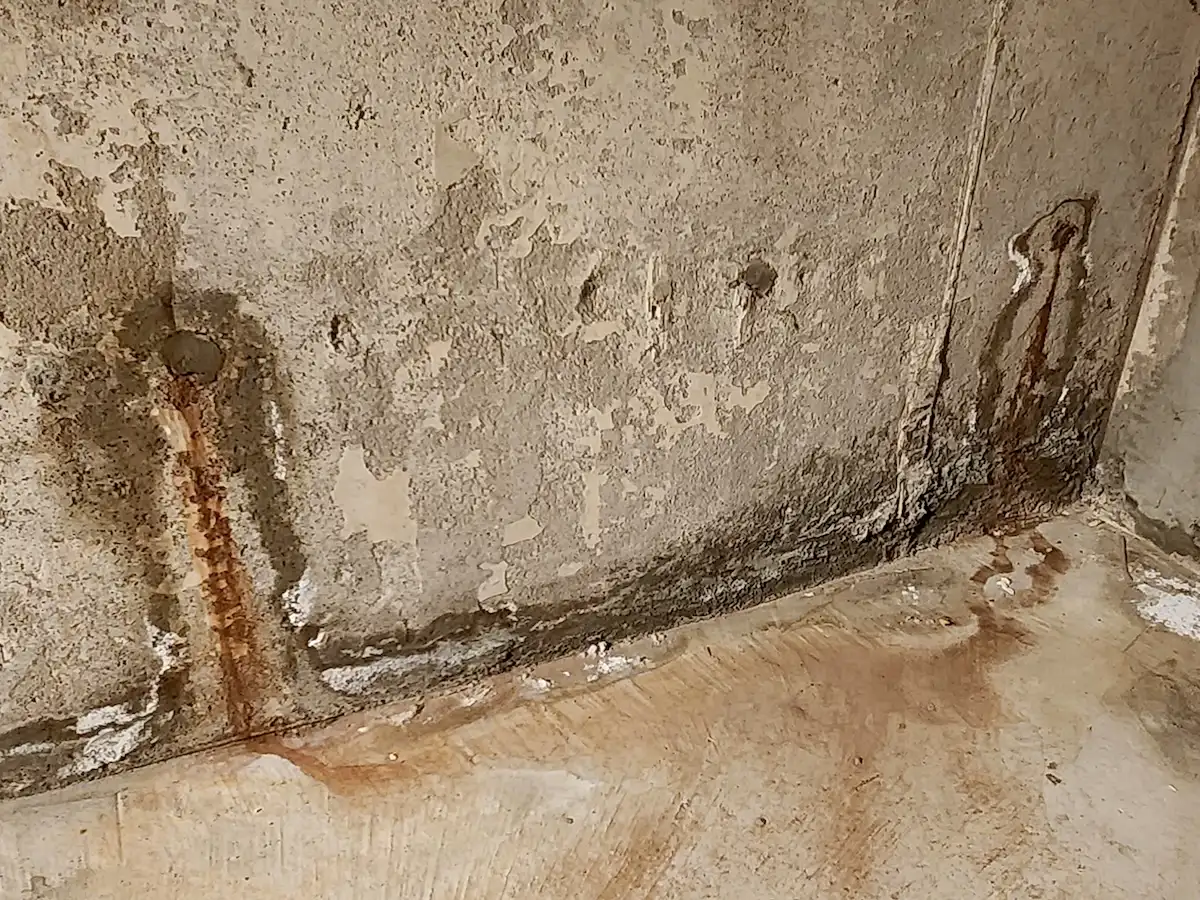

Two leaking tie rod holes with heavy water staining on a poured concrete foundation wall in Oakville — Two leaking tie-rod holes in an Oakville basement showing heavy water staining.

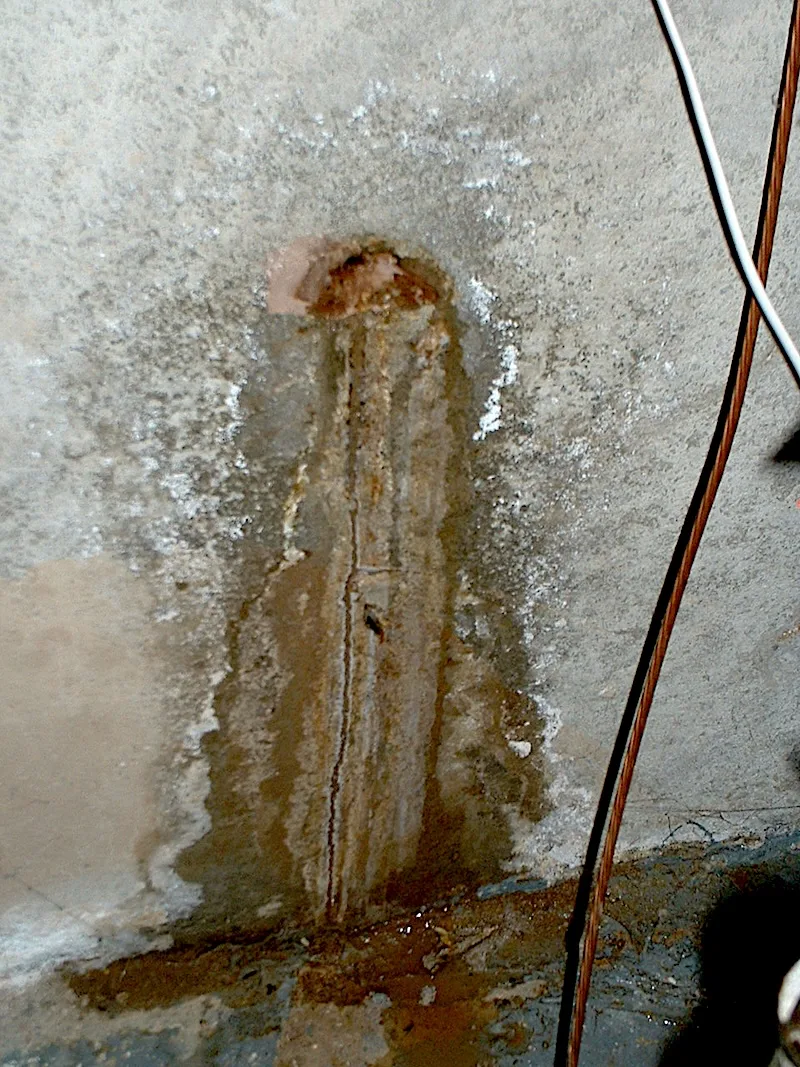

Tie rod hole with mud and mineral staining caused by repeated water seepage — Mud and mineral staining indicate a tie-rod hole has been leaking for an extended period.

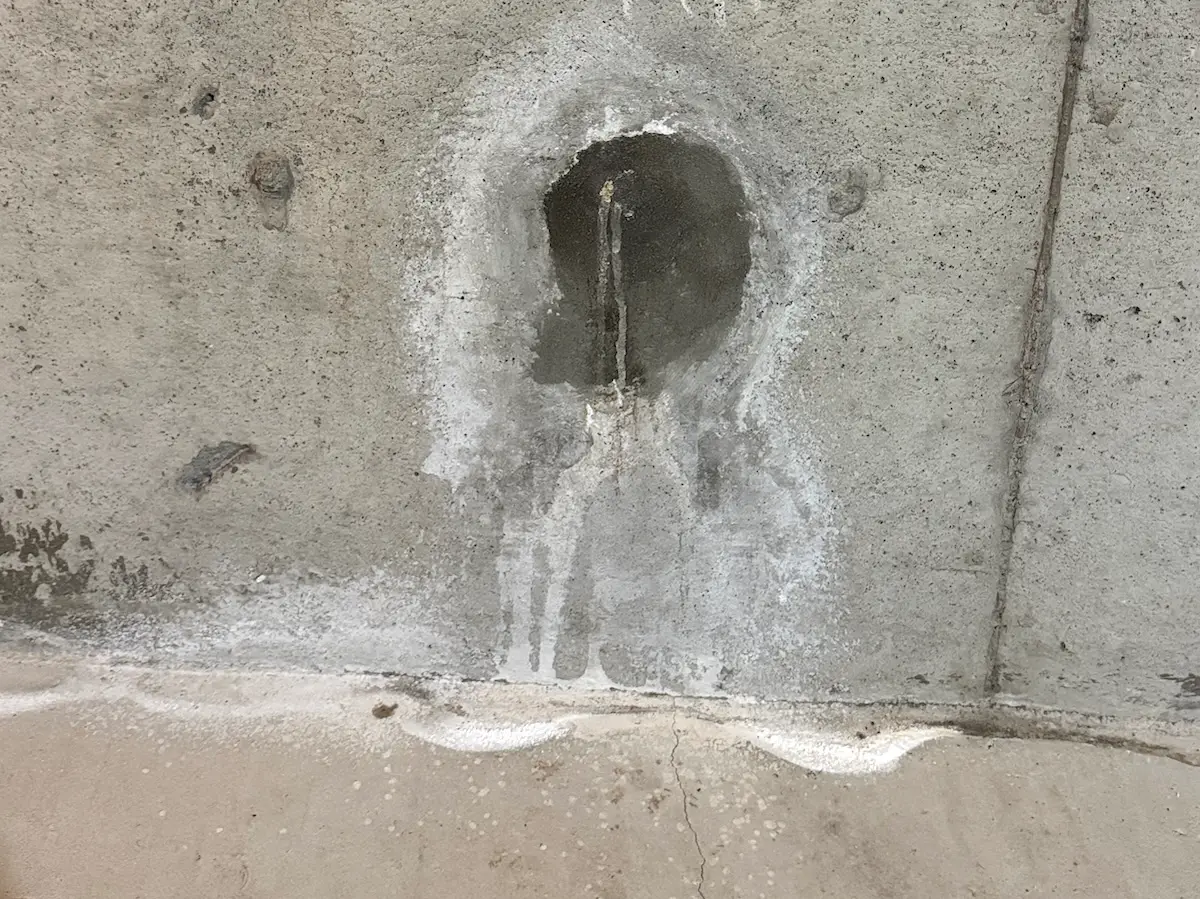

Tie rod hole with white efflorescence indicating repeated water infiltration — White efflorescence forms as groundwater evaporates and leaves mineral deposits behind.

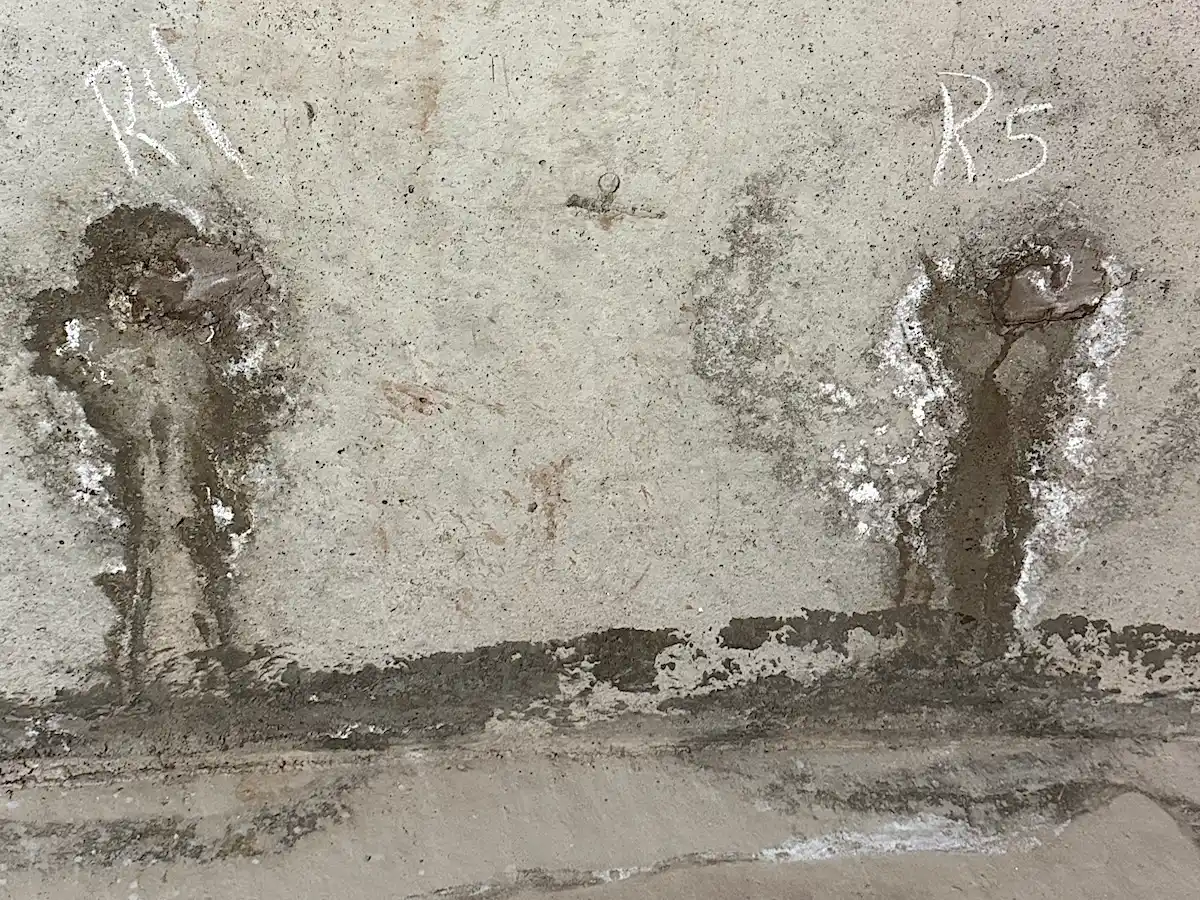

Tie rod holes showing evidence of past water leakage and staining on a concrete foundation wall — Multiple tie-rod holes showing clear evidence of previous groundwater leakage.

How We Repair Tie Rod Hole Leaks (No Excavation)

Locate the leaking tie-rod hole.
Plug the hole to minimize the escape of injected resin.
Drill a channel into the rod hole.
Inject polyurethane resin into the cavity (tie-rod hole).
The polyurethane expands to completely fill the cavity.
Leak path is sealed permanently—not a surface patch.
If a foundation crack is present, the crack is evaluated separately to determine whether a full polyurethane crack injection is required.
Excess polyurethane is scraped off for a clean, professional look.

This is a proper repair that keeps water on the exterior of the foundation.
Simply patching over a tie-rod hole with hydraulic cement, or a similar product, will cause water to be trapped in the wall
and cause concrete deterioration over time. Patch repairs often do not stand the test of time.

Completed tie-rod hole injection — A completed polyurethane tie-rod hole injection permanently seals the leak path and prevents groundwater from entering the basement.

Pricing & Warranty

When the leak is confined to the tie-rod hole, the repair is usually much less expensive than repairing a leaking foundation crack because less material and labour are required.
A single leaking tie-rod hole typically costs $295, while multiple tie-rod holes repaired during the same appointment may cost $137–$175 each, or as low as $100 each when 5 or more are repaired.

Number of Tie Rod Holes	Cost per Hole (Typical)
1 hole	$295
2–4 holes	$137–$175 each
5+ holes	As low as $100 each

Every repair includes an inspection of the surrounding foundation wall. We check for nearby foundation cracks, additional leaking tie-rod holes, pipe penetrations, and other seepage paths to help ensure that all significant sources of water entry are identified.

✅ No excavation required
✅ Work completed in 60–90 minutes depending on the quantity
✅ Long lasting, guaranteed waterproofing seal

Why Homeowners Choose AquaGuard Injection

Specialists in basement leak repair since 2002
Thousands of tie-rod hole leaks and foundation cracks permanently repaired across the Greater Toronto Area
We recommend only the repairs you actually need—never unnecessary excavation or waterproofing
Interior polyurethane injection specialists with no exterior digging required for most repairs
25-year written, transferable warranty on qualifying repairs

Also Have a Leaking Foundation Crack?

Tie-rod hole leaks and foundation crack leaks often occur together. In some cases, a foundation crack runs directly through a tie-rod hole, creating multiple pathways for groundwater to enter the basement. Repairing only the tie-rod hole may not stop the leak if the crack is left untreated.

Like tie-rod hole leaks, many leaking foundation cracks can be permanently repaired from inside the basement using polyurethane injection, often without excavation.

Learn About Our Foundation Crack Repair Process

Service Area – We Come to You

We repair tie rod leaks throughout the Greater Toronto Area, including:

Aurora,
Newmarket,
Richmond Hill,
Vaughan,
Mississauga,
Oakville,
Burlington,
Markham,
Bradford,
King City,
Woodbridge.

Contact Us to Request a Quote

Same-day and next-day scheduling available.

📞 Call 888-284-2384
|
💬 Text Us photos of your basement leak
|
Get a Quote

Tie-Rod Hole Leak – FAQs

How do I know if I have a tie rod leak?

Common signs of a leaking tie-rod hole include mud staining, mineral staining, water streaks below a circular patch in the concrete wall, and damp concrete surrounding the tie-rod hole.

Can tie-rod leaks be repaired from the inside?

Yes. Tie-rod leaks are almost exclusively permanently repaired from inside using high-pressure injection—no exterior excavation required.

How long does the repair take?

Most appointments take 60–90 minutes, start to finish.

Will it leak again after the repair?

The injected resin completely fills the rod hole cavity resulting in a permanent waterproof barrier, and the repair is guaranteed.

Can a foundation crack cause a tie-rod hole to leak?

Yes. In some cases, a foundation crack runs through or beside a tie-rod hole, allowing water to emerge at the tie-rod hole. Although the tie-rod hole appears to be the source of the leak, the foundation crack may also require polyurethane injection to permanently stop the water.

How much does tie-rod hole leak repair cost?

A single leaking tie-rod hole typically costs $295 to repair. Multiple tie-rod holes repaired during the same appointment may cost $137–$175 each, or as low as $100 each when 5 or more are repaired.
